PROTECTOR VISION 115 — Bollards NZ

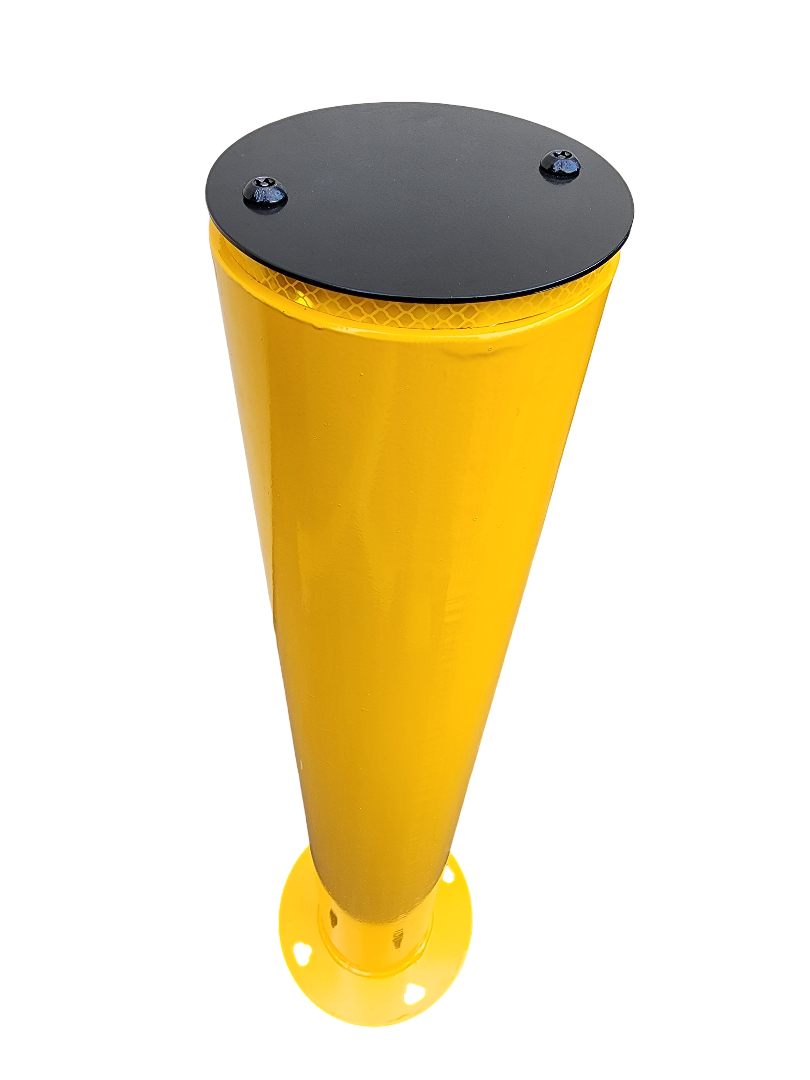

PROTECTOR VISION 115

Bollard Cap Details

Material: Galvanised Steel
Style: Low profile, Bolted
Feature: Reflector rebated into cap prevents vandalism
Diameter: 115mm
Finish: Black Powder-coat

Bollard Pipe (above ground)

Material: 100NB Medium Wall Steel
Finish: Hot Dip Galvanised & Yellow Powder-Coat
Diameter: 115mm
Height: 950mm (including cap)
Wall Thickness: 4.5mm

Bollard Base Plate

Material: Mild Steel
Thickness: 12mm
Diameter: 200mm
Finish: Hot Dip Galvanised

Specification and Installation Sheets

Click on the images below to view and download.

Want to know more about our PROTECTOR Bollards?

Call us today on +64 3 349 4316, or:

B4D-F Galvanised Surface Mount Fixed Bollard Detail and Size Specification.png

PROTECTOR 114SM Detail and Size Specifications

B4D-F Galvanised Surface Mount Fixed Bollard Finish and Size Specification.png

PROTECTOR 115SM Finish and Size Specifications

B4D-F Galvanised Surface Mount Fixed Bollard Installation Specification.png

PROTECTOR 115SM Installation Specifications

PROTECTOR 115SM CAD Files

Click on the buttons below to view and download our CAD product files.

B4D-F Surface Mount Fixed .DWG File

B4D-F Surface Mount Fixed .DXF File
