B2A-F Self Righting Surface Mount Bollard - Specifications
Bollard Cap Details
Material: Stainless Steel
Diameter: 114mm
Style: Fully welded and dressed stainless steel.
Bollard Pipe (above ground)
Material: Stainless Steel - 316 Marine Grade
Diameter: 114mm
Height: 750mm (including cap)
Wall Thickness: 3.14mm
Reflector: Rebated into pipe
Finish Options: Brushed
Bollard Base Ring
Material: Zinc Plated Steel, 32mm thick.
Style: Top edge, flush with ground level
Diameter: 180mm
Bollard Self Righting Detail
The B2.A-F Self Righting Surface Mount bollard utilises a powerful spring mechanism, allowing it to tilt up to 45 degrees when nudged by a vehicle. It will then return to vertical position without causing damage to the bollard or vehicle.
Specification and Installation Sheets
Click on the images below to view and download.
Want to know more about our B2A Self-Righting Surface Mount Bollards?
Call us today on +64 3 349 4316, or:

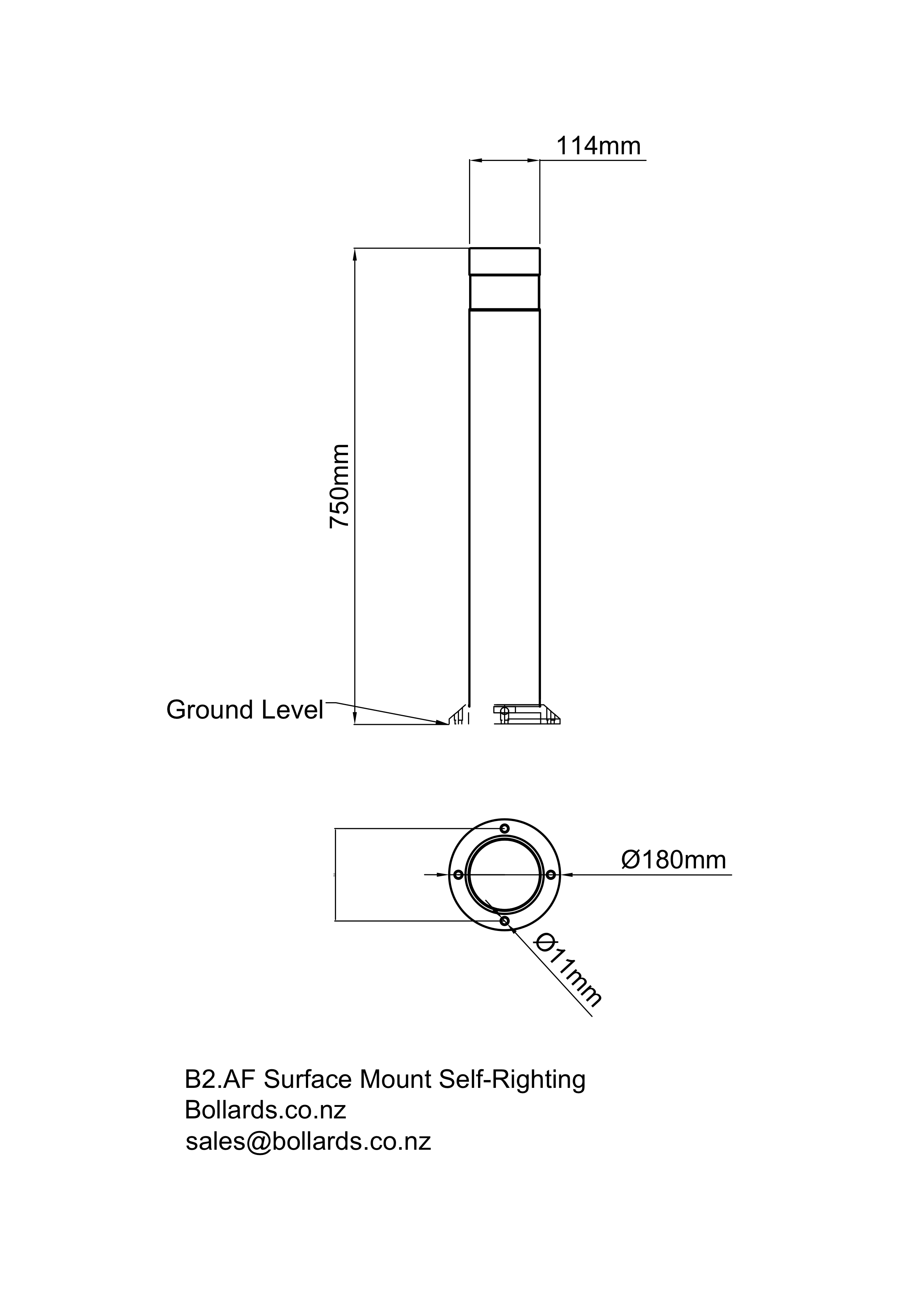

B2A-F Self Righting Surface Mount Bollard Detail and Size Specifications
B2A-F Self Righting Surface Mount Bollard Finish and Size Specifications
B2A-F Self Righting Surface Mount Bollard Installation Specifications
Bollards NZ - Stainless Steel Care Instructions
B2A-F Self Righting Surface Mount Bollard CAD Files
Click on the buttons below to view and download our CAD product files.
