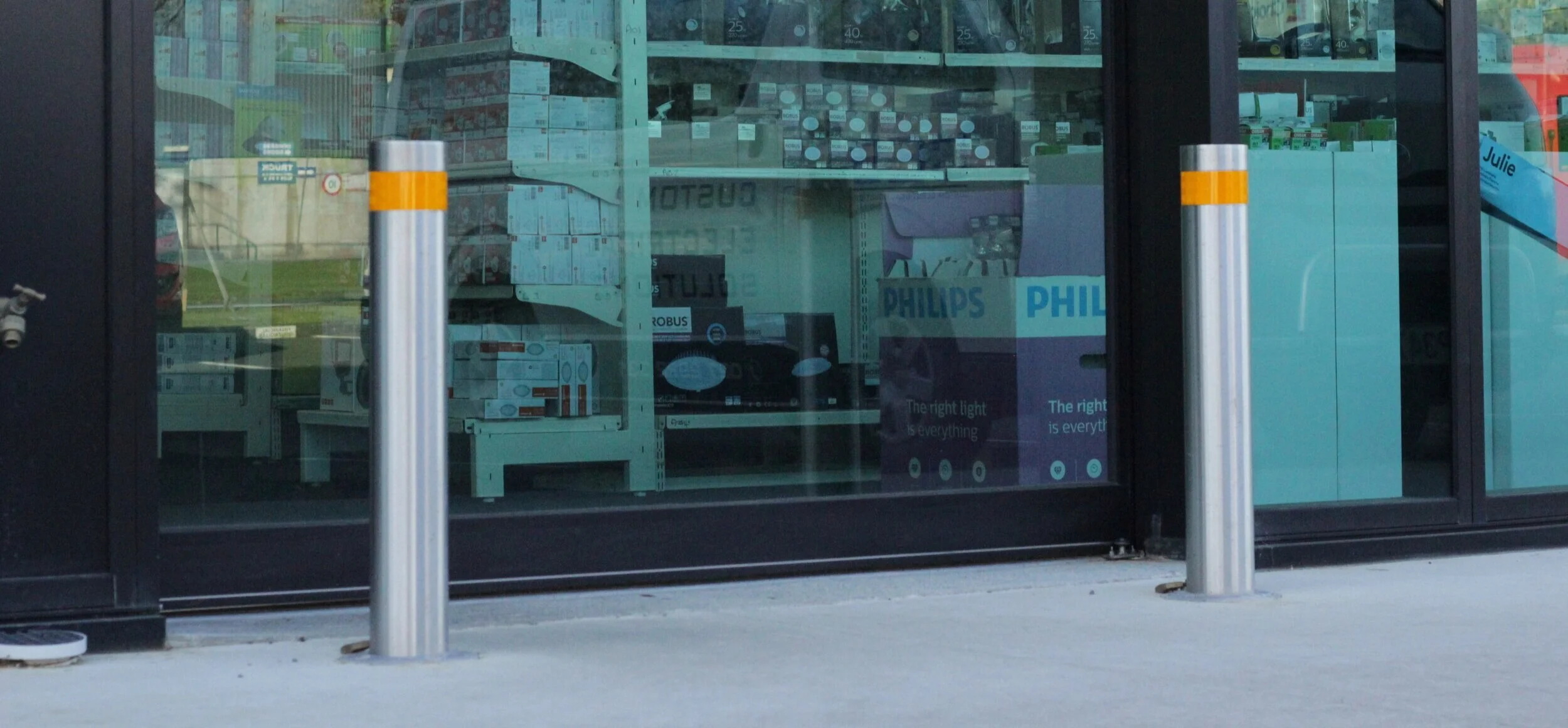

B2E Removable Bollard - Specifications
Bollard Cap Details
Material: Stainless Steel
Diameter: 114mm
Style: Fully welded & dressed stainless steel.
Bollard Pipe (above ground)
Material: Stainless Steel - 316 Marine Grade
Diameter: 114mm
Height: 750mm (including cap)
Wall Thickness: 3.14mm
Reflector: Rebated into pipe
Finish: Brushed
Note: Padlock not supplied.
Bollard Base Ring
Material: Aluminium
Style: Top edge, flush with ground level
Diameter: 201mm
Bollard Pipe (in ground)
Material: Spiral Weld Stainless Steel - 304 Grade
Diameter: 130mm
Height: 450mm
Wall Thickness: 3.14mm
Bollard Footing (in ground)
Material: Stainless Steel - 304 Grade
Size: 150mm x 150mm Square
Thickness: 3mm
Specification and Installation Sheets
Click on the images below to view and download.
Want to know more about our B2E Removable Bollards?
Call us today on +64 3 349 4316, or:
B2E Removable Bollard Detail and Size Specifications
B2E Removable Bollard Finish and Size Specifications
B2E Removable Bollard Installed Specification
B2E Removable Bollard Installation Specifications
Bollards NZ - Stainless Steel Care Instructions
B2E Removable Bollard CAD Files
Click on the buttons below to view and download our CAD product files.
