B2C Retractable Bollard - Specifications
Bollard Cap Details
Material: Cast Aluminium
Diameter: 114mm
Style: Security Keyed Cap Screw (allows for retracting and extending of bollard)
Bollard Pipe (above ground)
Material: Stainless Steel - 316 Marine Grade
Diameter: 114mm
Height: 750mm (including cap)
Wall Thickness: 3.14mm
Reflector: Rebated into pipe
Finish Options: Brushed
Bollard Base Ring
Material: Aluminium
Style: Top edge, flush with ground level
Diameter: 201mm
Bollard Pipe (in ground)
Material: Stainless Steel - 304 Grade
Diameter: 130mm
Height: 923mm
Wall Thickness: 3.14mm
Bollard Footing (in ground)
Material: Stainless Steel - 304 Grade
Size: 150mm x 150mm Square
Thickness: 3mm
Specification and Installation Sheets
Click on the images below to view and download.
Want to know more about our B2C Retractable Bollards?
Call us today on +64 3 349 4316, or:

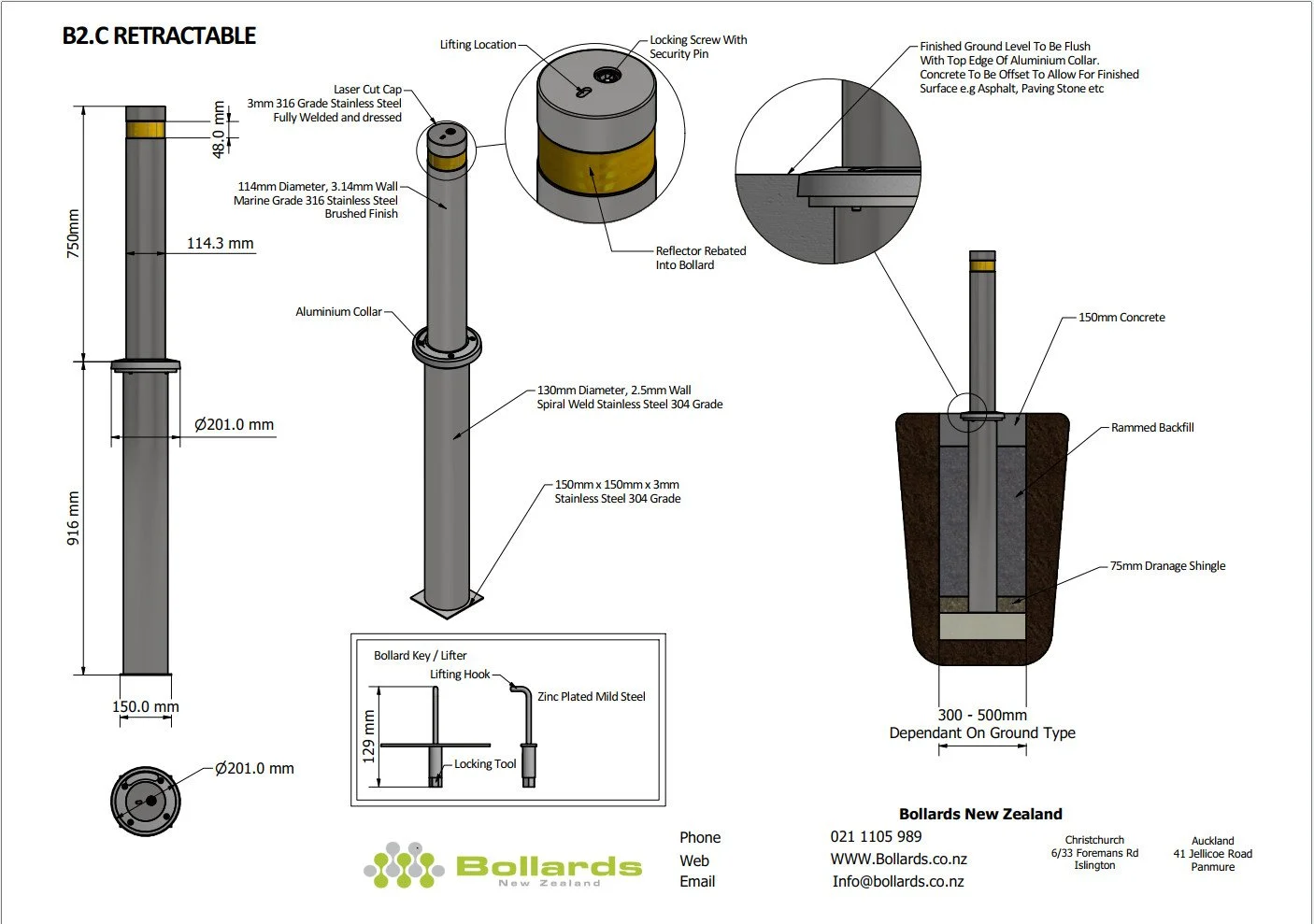

B2C Retractable Bollard Detail and Size Specifications
B2C Retractable Bollard Finish and Size Specifications
B2C Retractable Bollard Installation Angle Specifications
B2C Retractable Bollard Installation Specifications
Bollards NZ - Stainless Steel Care Instructions
B2C Retractable Bollard CAD Files
Click on the buttons below to view and download our CAD product files.
